Unsupervised Clustering Algorithms

K-Means Clustering

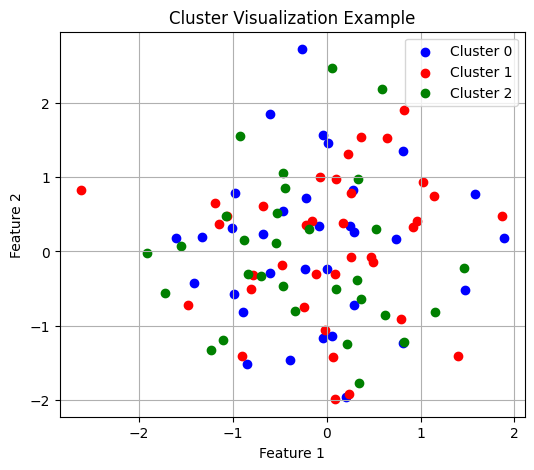

Cluster Assignment Visualization

When visualizing clustering results, using distinct colors helps identify group boundaries:

Confusion Matrix Interpretation

Confusion matrices help evaluate clustering quality but require careful interpretation since cluster indices may not match true class labels:

Confusion Matrix (rows: true labels, columns: predicted clusters):
   0  1  2
A  3  0  0
B  0  2  1
C  0  1  2

Gaussian Mixture Models and EM

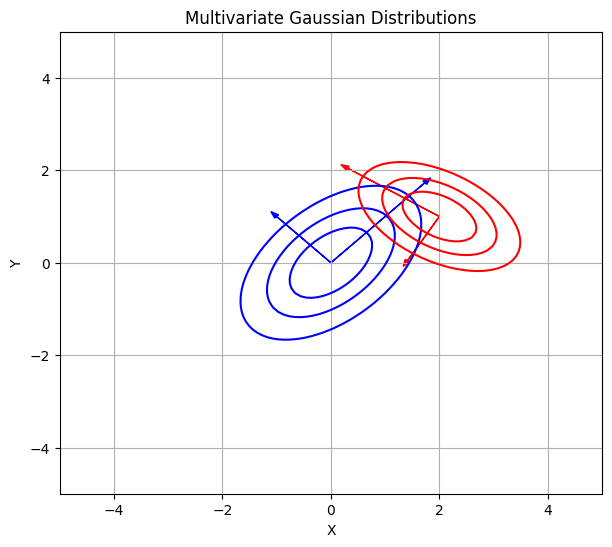

Understanding the Multivariate Gaussian

The multivariate Gaussian probability density function forms the foundation of GMM:

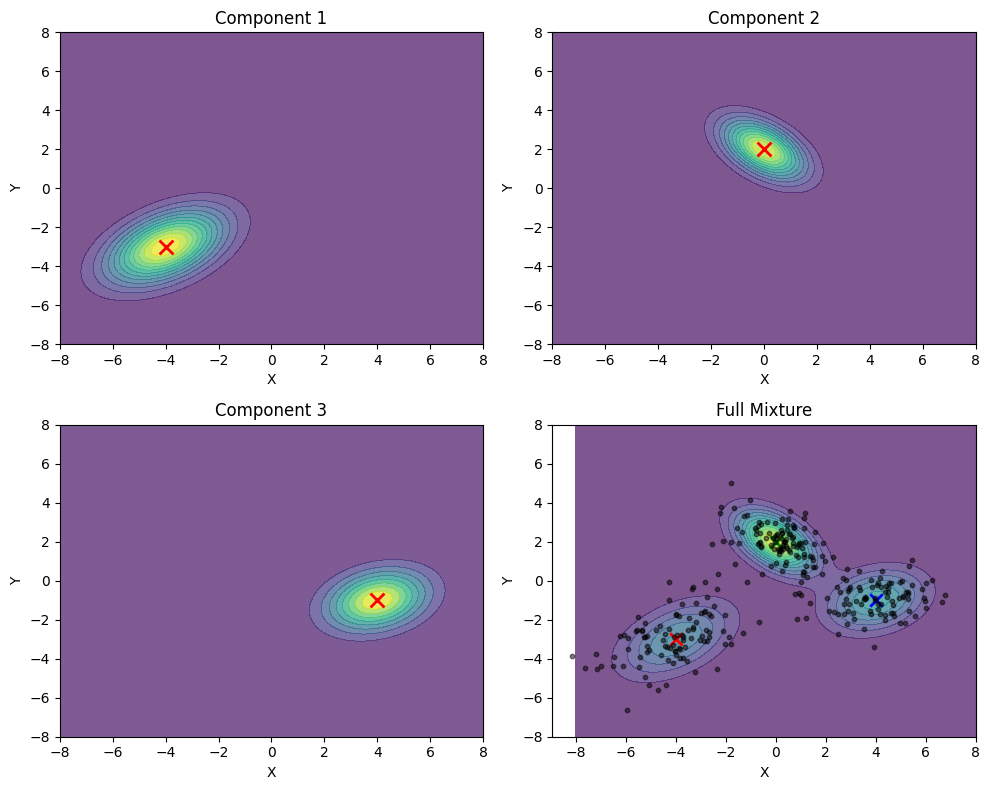

Mixture Models: “Patching the Bumps”

Gaussian Mixture Models combine multiple Gaussian components to represent complex data distributions:

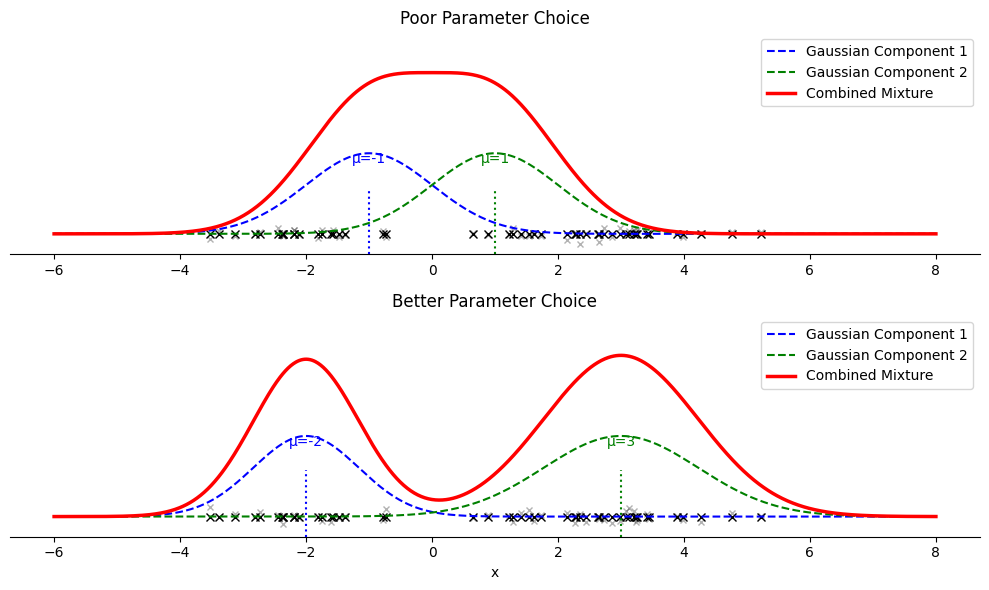

1D Model Fitting Examples

Visualizing how GMM fits data on a number line helps understand parameter selection:

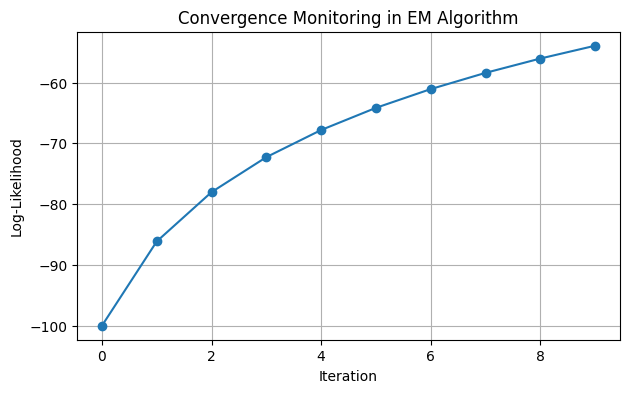

Convergence Monitoring

The EM algorithm’s convergence can be monitored through log-likelihood:

One-Hot Initialization from K-Means

K-Means results provide an effective initialization for GMM:

Initial gamma matrix (one-hot encoding of cluster assignments):
[[1. 0. 0.]
 [1. 0. 0.]
 [0. 1. 0.]
 [0. 1. 0.]]

Numerical Stability in Matrix Operations

Covariance matrices in EM may become ill-conditioned:

Original condition number: 19.0
Regularized condition number: 19.0

Working with HDF5 Files

Introduction to HDF5

HDF5 (Hierarchical Data Format version 5) provides an efficient way to store and access structured data. It supports storage of multiple arrays within a single file with fast random access.

Basic File Operations

Understanding HDF5 file structure helps when working with stored data:

Datasets in file: ['binary_array', 'float_array']
Float array description: Random float values
Float array shape: (5, 10)
Binary array shape: (3, 5)

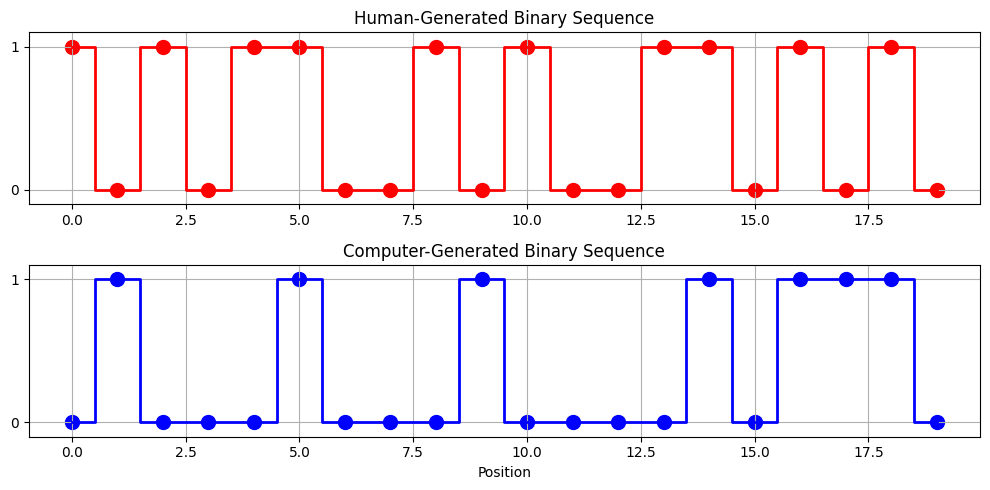

Generating Random Binary Sequences

When creating binary sequences manually, patterns often emerge that wouldn’t appear in truly random data:

Human sequence transitions: 15/19
Computer sequence transitions: 10/19

Validating HDF5 File Content

It’s important to verify that HDF5 files contain the expected data:

File structure:
  - Dataset: binary_array, Shape: (3, 5), Type: int64
  - Dataset: float_array, Shape: (5, 10), Type: float64
Contains only binary values (0, 1): True
Array dimensions: (3, 5)

Efficient Data Access

HDF5’s key advantage is efficient access to selected portions of data:

Shape of full dataset: (1000, 50)
Shape of selected rows: (4, 50)
Shape of region: (5, 5)
